Grove GMK 6400

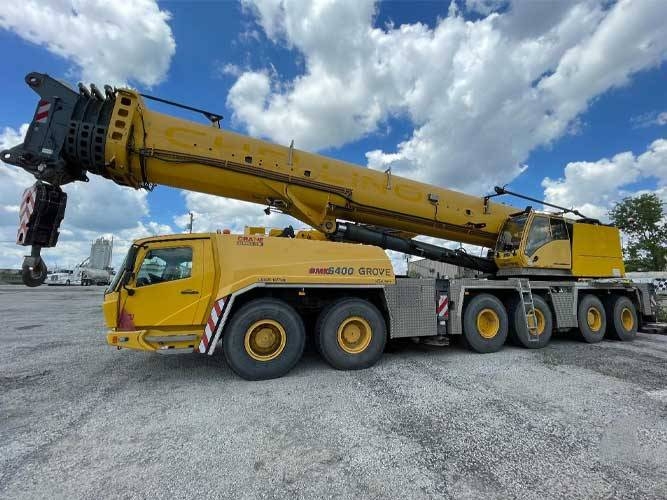

Used 2013 Grove GMK6400 All-Terrain Crane

CARRIER
405 kW (551 HP) Mercedes-Benz OM502LA – TIER 4 intermediate
Megatrak all-wheel hydropneumatic suspension
ZF AS Tronic, electronic-pneumatic shifted transmission
12 x 8 x 12 hydraulic hybrid drive system
16.00 R25 wheels
525/80/R25

SUPERSTRUCTURE
400 t (450 USt) capacity
15.4 m – 60 m (51 ft – 197 ft) 5-section boom with TWIN-LOCK pinning system
Mega-wing lift system
25 m – 79 m (82 ft – 259 ft) luffing jib
63 m (206 ft) max tip height
-1.5 to 82 degree boom elevation
Cab hydraulically tiltable to 20 degrees
RCL Manitowoc CCS (Crane Control System)
Main and auxiliary hoist
135 t (297,600 lb) total counterweight
Four two-stage hydraulic telescoping beam outriggers
Work lights, tool kit, fire extinguisher, aux boom nose, wind speed indicator
